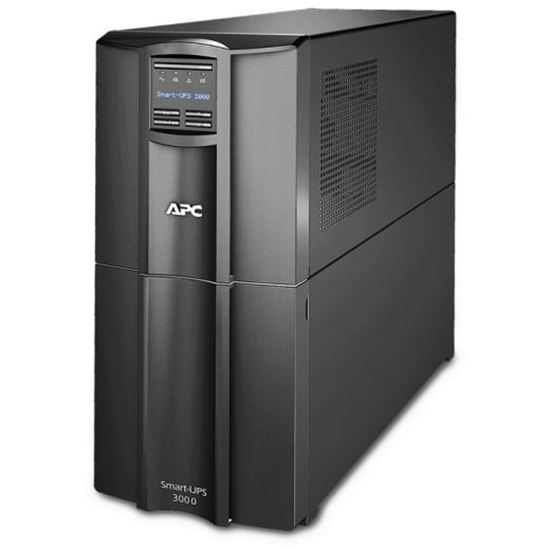

APC Smart-UPS 3000VA (1980W) Tower with Smart Connect. 230V Input/
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMT3000IC
- MPN: SMT3000IC
APC
APC Smart-UPS SMT3000IC - 8x C13, 1x C19, USB, SmartConnect, 3000VA
- SKU
- CNZ-CD-004505
- MPN
- SMT3000IC
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 3000VA (1980W) Tower with Smart Connect. 230V Input/ Output. 8x IEC C13 Outlets. With Battery Backup. LED Status Indicators. USB Connectivity
Key features
- UPS topology: Line-Interactive
- Output power capacity: 3 kVA
- Output power: 2700 W
- Waveform: Sine
- Input operation voltage (min): 151 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 365 J
- Efficiency: 98.4%
- Emergency Power Off (EPO): Yes
- Noise level: 53 dB
- Audible alarm(s): Yes
- Auto-restart: Yes
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 9 AC outlet(s)
- Number of output IEC jumpers: 2
- USB port: Yes
- SmartSlot: Yes
- SmartConnect port: Yes
Specifications
Spec
| Spec | Output |
|---|
Color
| Color | Black |
|---|
Topology
| Topology | Line interactive |
|---|
Filtering
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|---|
Net Weight
| Net Weight | 52.5KG |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 544MM, 54.4CM |
|---|
Maximum Width
| Maximum Width | 197MM, 19.7CM |
|---|
Transfer Time
| Transfer Time | 6 ms typical : 10 ms maximum |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Filtering (35)
| Filtering (35) | Physical |
|---|
Maximum Height
| Maximum Height | 435MM, 43.5CM |
|---|
Shipping Depth
| Shipping Depth | 762MM, 76.2CM |
|---|
Shipping Width
| Shipping Width | 381MM, 38.1CM |
|---|
Input frequency
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 699MM, 69.9CM |
|---|
Shipping weight
| Shipping weight | 63.7KG |
|---|
Units per Pallet
| Units per Pallet | 9.0 |
|---|
Input Connections
| Input Connections | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
|---|
Interface Port(s)
| Interface Port(s) | SmartSlot, USB |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Output Connections
| Output Connections | (1) IEC 320 C19(2) IEC Jumpers(8) IEC 320 C13 |
|---|
Transfer Time (12)
| Transfer Time (12) | Input |
|---|
Extendable Run Time
| Extendable Run Time | 1 |
|---|
Operating Elevation
| Operating Elevation | 0 - 3048meters |
|---|
Output Voltage Note
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
|---|
Shipping Width (43)
| Shipping Width (43) | Physical |
|---|
Storage Temperature
| Storage Temperature | -15 - 45 °C |
|---|
Surge energy rating
| Surge energy rating | 365 Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0 - 40 °C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Output power capacity
| Output power capacity | 2.7kWatts / 3.0kVA |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (47)
| Units per Pallet (47) | Environmental |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Extendable Run Time (26)
| Extendable Run Time (26) | Communications & Management |
|---|
Other Input Voltages (19)
| Other Input Voltages (19) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5 % |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0 - 95 % |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Yes |
|---|
Online thermal dissipation
| Online thermal dissipation | 375.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 % |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 271 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 2.7kWatts / 3.0kVA |
|---|
Online thermal dissipation (56)
| Online thermal dissipation (56) | Conformance |
|---|
Online thermal dissipation (57)
| Online thermal dissipation (57) | Approvals : CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
|---|
Online thermal dissipation (58)
| Online thermal dissipation (58) | Standard warranty: 3 years repair or replace (excluding battery) and 2 years for battery, optional on-sitewarranties available, optional extended warranties available |
|---|
Online thermal dissipation (59)
| Online thermal dissipation (59) | Sustainable Offer Status |
|---|
Online thermal dissipation (60)
| Online thermal dissipation (60) | RoHS: Compliant |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 151 - 302 Adjustable, 160 - 286V |
|---|
Available SmartSlot™ Interface Quantity
| Available SmartSlot™ Interface Quantity | 1 |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 53.0dBA |
|---|
Available SmartSlot™ Interface Quantity (32)
| Available SmartSlot™ Interface Quantity (32) | Surge Protection and Filtering |
|---|
