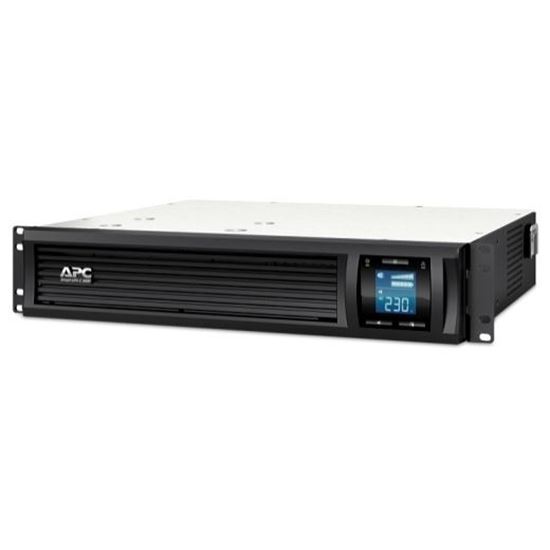

APC Smart-UPS 3000VA (2100W) 2U Rack Mount. 230V Input/Output.
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMC3000RMI2U
- MPN: SMC3000RMI2U
APC
APC Smart-UPS C, Line Interactive, 3kVA, Rackmount 2U, 230V, 8x IEC…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 3000VA (2100W) 2U Rack Mount. 230V Input/Output. 8x IEC C13 Outlets. With Battery Backup. LED Status Indicators. USB Connectivity. Audible Alarm. Rack Mount Kit Included
Key features
- UPS topology: Line-Interactive
- Output power capacity: 3 kVA
- Output power: 2100 W
- Waveform: Sine
- Input operation voltage (min): 180 V
- Input operation voltage (max): 287 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 230 V
- Output operation voltage (max): 230 V
- AC outlet types: IEC 320
- USB port: Yes
- SmartSlot: Yes
- SmartConnect port: No
- Form factor: Rackmount
- Rack capacity: 2U
- Product colour: Black
- LED indicators: Yes
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Management card included: No
- Width: 480 mm
- Depth: 670 mm
- Height: 89 mm
Specifications
Spec
| Spec | Output |
|---|
Color
| Color | Black |
|---|
Runtime
| Runtime | View Runtime Graph (Available in Technical Tab on site) View Runtime Chart (Available in Technical Tab on site) |
|---|
Topology
| Topology | Line interactive |
|---|
Approvals
| Approvals | C-Tick, CE, EAC, GOST, GS Mark, IRAM, SABS, VDE |
|---|
Efficiency
| Efficiency | View Efficiency Graph (Available in Technical Tab on site) |
|---|
Net Weight
| Net Weight | 41.0KG |
|---|
Rack Height
| Rack Height | 2U |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 670MM, 67.0CM |
|---|
Maximum Width
| Maximum Width | 480MM, 48.0CM |
|---|
Transfer Time
| Transfer Time | 8 ms typical : 10 ms maximum |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Maximum Height
| Maximum Height | 89MM, 8.9CM |
|---|
Shipping Depth
| Shipping Depth | 980MM, 98.0CM |
|---|
Shipping Width
| Shipping Width | 600MM, 60.0CM |
|---|
Efficiency (26)
| Efficiency (26) | Communications & Management |
|---|
Input frequency
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 254MM, 25.4CM |
|---|
Shipping weight
| Shipping weight | 50.9KG |
|---|
Units per Pallet
| Units per Pallet | 16.0 |
|---|
Input Connections
| Input Connections | IEC 320 C20 |
|---|
Interface Port(s)
| Interface Port(s) | USB |
|---|
Standard warranty
| Standard warranty | 2 years repair or replace |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Audible Alarm (30)
| Audible Alarm (30) | Surge Protection and Filtering |
|---|
Audible Alarm (31)
| Audible Alarm (31) | Surge energy rating :300Joules |
|---|
Audible Alarm (32)
| Audible Alarm (32) | Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|---|
Audible Alarm (33)
| Audible Alarm (33) | Physical |
|---|
Output Connections
| Output Connections | (2) IEC Jumpers(1) IEC 320 C19(8) IEC 320 C13 |
|---|
Transfer Time (10)
| Transfer Time (10) | Input |
|---|
Operating Elevation
| Operating Elevation | 0 - 3048meters |
|---|
Storage Temperature
| Storage Temperature | -15 - 45 °C |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Output power capacity
| Output power capacity | 2.1kWatts / 3.0kVA |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (45)
| Units per Pallet (45) | Environmental |
|---|
Units per Pallet (46)
| Units per Pallet (46) | Operating Temperature: 0 - 40 °C |
|---|
Units per Pallet (47)
| Units per Pallet (47) | Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications. |
|---|
Units per Pallet (48)
| Units per Pallet (48) | Environmental |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Standard warranty (59)
| Standard warranty (59) | Sustainable Offer Status |
|---|
Standard warranty (60)
| Standard warranty (60) | RoHS : Compliant |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5 % |
|---|
Number of Power Cords (16)
| Number of Power Cords (16) | Batteries & Runtime |
|---|
Online thermal dissipation
| Online thermal dissipation | 81.0BTU/hr |
|---|
Typical recharge time (19)
| Typical recharge time (19) | Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications. |
|---|
Typical recharge time (20)
| Typical recharge time (20) | Batteries & Runtime |
|---|
Equipment protection policy
| Equipment protection policy | Lifetime : $150000 |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 % |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 163 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 2.1kWatts / 3.0kVA |
|---|
Online thermal dissipation (55)
| Online thermal dissipation (55) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50 Hz Sync to mains |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 180 - 287V |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 42.0dBA |
|---|
