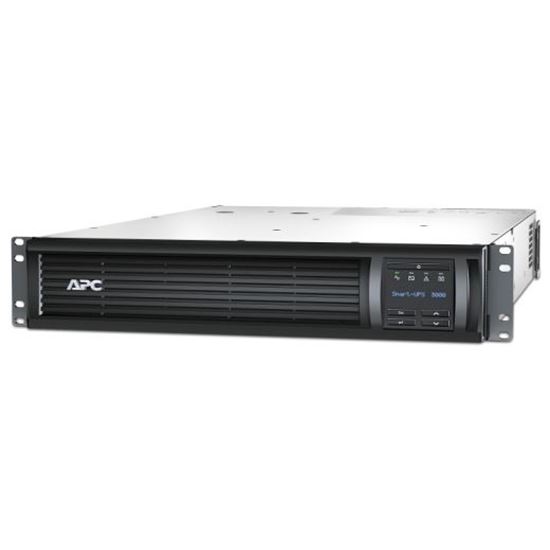

APC Smart-UPS 3000VA (2700W) 2U Rack Mount with Network Card. 230V
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMT3000RMI2UNC
- MPN: SMT3000RMI2UNC
APC
APC Smart-UPS SMT3000RMI2UNC - 8x C13, 1x C19, USB, Rackmount 2U,…
- SKU
- CNZ-CD-004464
- MPN
- SMT3000RMI2UNC
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 3000VA (2700W) 2U Rack Mount with Network Card. 230V Input/Output. 8x IEC C13 Outlets. With Battery Backup. LED Status Indicators. USB Connectivity. Rach Mount Kit Included
Key features
- UPS topology: Line-Interactive
- Output power capacity: 3 kVA
- Output power: 2700 W
- Waveform: Sine
- Input operation voltage (min): 151 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Surge energy rating: 320 J
- Response time: 4 ms
- Emergency Power Off (EPO): O
- Noise level: 55 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Web-based management: Yes
- Audible alarm modes: Battery replacement
- Auto-restart: Yes
- AC outlet types: C13 coupler, C19 coupler, C20 coupler
- Power plug: C20 coupler
- AC outlets quantity: 9 AC outlet(s)
- USB 2.0 ports quantity: 1
- SmartSlot: Yes
Specifications
Spec
| Spec | Output |
|---|
Colour
| Colour | Black |
|---|
Topology
| Topology | Line-interactive |
|---|
Approvals
| Approvals | CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
|---|
Net Weight
| Net Weight | 44.19KG |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: configurable delays |
|---|
Control panel
| Control panel | LED status display with online: on battery: replace battery and overload indicators, Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 683MM, 68.3CM |
|---|
Maximum Width
| Maximum Width | 480MM, 48.0CM |
|---|
Transfer Time
| Transfer Time | 4ms typical |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Maximum Height
| Maximum Height | 86MM, 8.6CM |
|---|
Shipping Depth
| Shipping Depth | 980MM, 98.0CM |
|---|
Shipping Width
| Shipping Width | 600MM, 60.0CM |
|---|
Input frequency
| Input frequency | 50/60Hz +/- 3Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 254MM, 25.4CM |
|---|
Shipping weight
| Shipping weight | 51.59KG |
|---|
Units per Pallet
| Units per Pallet | 8.0 |
|---|
Interface Port(s)
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Transfer Time (8)
| Transfer Time (8) | Input |
|---|
Standard warranty:
| Standard warranty: | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site |
|---|
Operating Elevation
| Operating Elevation | 0 ~ 3048meters |
|---|
Output Voltage Note
| Output Voltage Note | Configurable for 220: 230 or 240 nominal output voltage |
|---|
Storage Temperature
| Storage Temperature | -15°C~40°C |
|---|
Surge energy rating
| Surge energy rating | 320Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0°C~40°C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (37)
| Units per Pallet (37) | Environmental |
|---|
Standard warranty: (49)
| Standard warranty: (49) | Sustainable Offer Status |
|---|
Standard warranty: (50)
| Standard warranty: (50) | RoHS: Compliant |
|---|
Surge energy rating (26)
| Surge energy rating (26) | Physical |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Optional |
|---|
Other Input Voltages (13)
| Other Input Voltages (13) | Batteries & Runtime |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0%~95% |
|---|
Online thermal dissipation
| Online thermal dissipation | 348.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0%~95% |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 182 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Emergency Power Off (EPO) (24)
| Emergency Power Off (EPO) (24) | Surge Protection and Filtering |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 2.7kWatts / 3.0kVA |
|---|
Online thermal dissipation (46)
| Online thermal dissipation (46) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60 Hz +/- 3Hz Sync to mains |
|---|
Battery Charge Power (Watts) (19)
| Battery Charge Power (Watts) (19) | Communications & Management |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 151 - 302 Adjustable, 160 - 286V |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 55.0dBA |
|---|
Questions
$6,956.34inc GST
