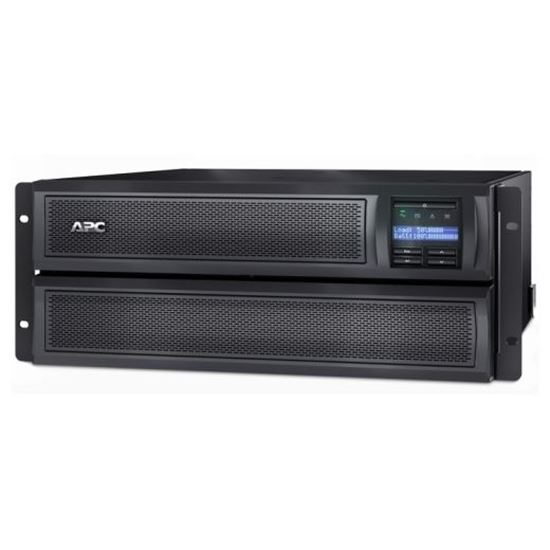

APC Smart-UPS 3000VA (2700W) 4U Rack/Tower. 200V-240V Input/Output.
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMX3000HV
- MPN: SMX3000HV
APC
APC Smart-UPS X SMX3000HV - 3000VA, 8x C13 + 2x C19 outlet, USB,…
- SKU
- CNZ-CD-004472
- MPN
- SMX3000HV
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 3000VA (2700W) 4U Rack/Tower. 200V-240V Input/Output. 8x IEC C13 Outlets. Internal Battery Backup. LCD Interface. USB, RJ-45, Serial, & SmartSlot Connectivity. Audible Alarm.
Key features
- UPS topology: Line-Interactive
- Output power capacity: 3 kVA
- Output power: 2700 W
- Waveform: Sine
- Input operation voltage (min): 140 V
- Input operation voltage (max): 280 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 208 V
- Output operation voltage (max): 240 V
- Output frequency regulation: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 645 J
- Hold time (min): 2 ms
- Hold time (max): 10 ms
- Efficiency: 98.5%
- Crest factor: 3:1
- Emergency Power Off (EPO): Yes
- Noise level: 55 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Auto-restart: Yes
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 10 AC outlet(s)
Specifications
Spec
| Spec | Output |
|---|
Topology
| Topology | Line-interactive |
|---|
Approvals
| Approvals | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, TISI, VDE |
|---|
Filtering
| Filtering | Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
|---|
Net Weight
| Net Weight | 38.64KG |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: configurable delays |
|---|
Control panel
| Control panel | LED status display with online: on battery: replace battery and overload indicators, Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 483MM, 48.3CM |
|---|
Maximum Width
| Maximum Width | 178MM, 17.8CM |
|---|
Transfer Time
| Transfer Time | 6 ms typical: 10 ms maximum |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Filtering (29)
| Filtering (29) | Physical |
|---|
Maximum Height
| Maximum Height | 432MM, 43.2CM |
|---|
Shipping Depth
| Shipping Depth | 633MM, 63.3CM |
|---|
Shipping Width
| Shipping Width | 586MM, 58.6CM |
|---|
Input frequency
| Input frequency | 50/60Hz +/- 3Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 330MM, 33.0CM |
|---|
Shipping weight
| Shipping weight | 47.73KG |
|---|
Units per Pallet
| Units per Pallet | 6 |
|---|
Interface Port(s)
| Interface Port(s) | RJ-45 Serial, SmartSlot |
|---|
Load Crest Factor
| Load Crest Factor | 3 : 1 |
|---|
Standard warranty
| Standard warranty | 3-year |
|---|
Storage Elevation
| Storage Elevation | 0~15240 meters |
|---|
Transfer Time (9)
| Transfer Time (9) | Input |
|---|
Extendable Run Time
| Extendable Run Time | 1 |
|---|
Operating Elevation
| Operating Elevation | 0~3048meters |
|---|
Storage Temperature
| Storage Temperature | -15°C~45°C |
|---|
Surge energy rating
| Surge energy rating | 645Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0°C~40°C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (39)
| Units per Pallet (39) | Environmental |
|---|
Extendable Run Time (20)
| Extendable Run Time (20) | Communications & Management |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Yes |
|---|
Other Input Voltages (14)
| Other Input Voltages (14) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5% |
|---|
Online thermal dissipation
| Online thermal dissipation | 184.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0~95% |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 245 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 2.7kWatts / 3.0kVA |
|---|
Online thermal dissipation (47)
| Online thermal dissipation (47) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60Hz +/- 3Hz Sync to mains |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 140V~286V |
|---|
Available SmartSlot™ Interface Quantity
| Available SmartSlot™ Interface Quantity | 1 |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 55.0dBA |
|---|
Available SmartSlot™ Interface Quantity (26)
| Available SmartSlot™ Interface Quantity (26) | Surge Protection and Filtering |
|---|
Questions
$5,701.69inc GST
