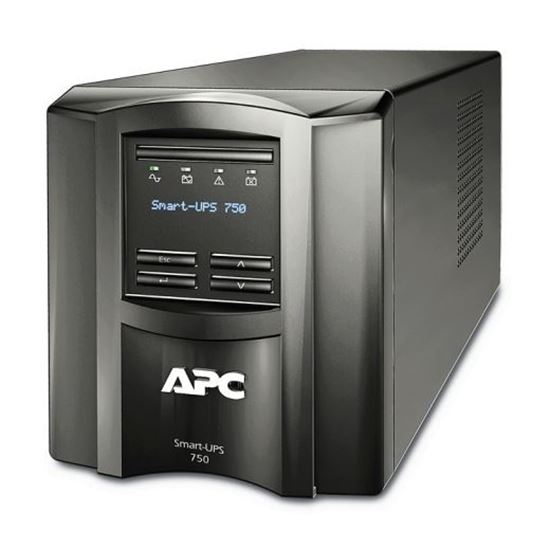

APC Smart-UPS 750VA (500W) Tower with Smart Connect. 230V Input/
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMT750IC
- MPN: SMT750IC
APC
APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA
- SKU
- CNZ-CD-004506
- MPN
- SMT750IC
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 750VA (500W) Tower with Smart Connect. 230V Input/ Output. 6x IEC C13 Outlets. With Battery Backup. LED Status Indicators. USB Connectivity. 1.8m Power Cord.
Key features
- UPS topology: Line-Interactive
- Output power capacity: 0.75 kVA
- Output power: 500 W
- Waveform: Sine
- Input operation voltage (min): 151 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 540 J
- Efficiency: 98%
- Noise level: 40 dB
- Audible alarm(s): Yes
- Auto-restart: Yes
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 6 AC outlet(s)
- Number of output IEC jumpers: 2
- USB port: Yes
- Ethernet LAN (RJ-45) ports: 1
- SmartSlot: Yes
- SmartConnect port: Yes
- Battery technology: Sealed Lead Acid (VRLA)
Specifications
Spec
| Spec | Output |
|---|
Colour
| Colour | Black |
|---|
Topology
| Topology | Line-interactive |
|---|
Filtering
| Filtering | Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
|---|
Net Weight
| Net Weight | 11.8KG |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: configurable delays |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 369MM, 36.9CM |
|---|
Maximum Width
| Maximum Width | 138MM, 13.8CM |
|---|
Transfer Time
| Transfer Time | 6 ms typical: 10 ms maximum |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Filtering (28)
| Filtering (28) | Physical |
|---|
Maximum Height
| Maximum Height | 161MM, 16.1CM |
|---|
Shipping Depth
| Shipping Depth | 499MM, 49.9CM |
|---|
Shipping Width
| Shipping Width | 278MM, 27.8CM |
|---|
Input frequency
| Input frequency | 50/60 Hz +/- 3Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 301MM, 30.1CM |
|---|
Shipping weight
| Shipping weight | 14.23KG |
|---|
Units per Pallet
| Units per Pallet | 24.0 |
|---|
Interface Port(s)
| Interface Port(s) | SmartSlot, USB |
|---|
Storage Elevation
| Storage Elevation | 0~15240meters |
|---|
Transfer Time (8)
| Transfer Time (8) | Input |
|---|
Operating Elevation
| Operating Elevation | 0 ~3048meters |
|---|
Storage Temperature
| Storage Temperature | -15°C~45°C |
|---|
Surge energy rating
| Surge energy rating | 540Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0°C~40°C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (39)
| Units per Pallet (39) | Environmental |
|---|
Other Input Voltages (13)
| Other Input Voltages (13) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5% |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0~95% |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Optional |
|---|
Online thermal dissipation
| Online thermal dissipation | 90.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0~95% |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 49 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 500 Watts / 750VA |
|---|
Online thermal dissipation (48)
| Online thermal dissipation (48) | Conformance |
|---|
Online thermal dissipation (49)
| Online thermal dissipation (49) | Approvals: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
|---|
Online thermal dissipation (50)
| Online thermal dissipation (50) | Standard warranty: 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
Online thermal dissipation (51)
| Online thermal dissipation (51) | Sustainable Offer Status |
|---|
Online thermal dissipation (52)
| Online thermal dissipation (52) | RoHS: Compliant |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60 Hz +/- 3Hz Sync to mains |
|---|
Battery Charge Power (Watts) (19)
| Battery Charge Power (Watts) (19) | Communications & Management |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 151 - 302 Adjustable, 160 - 280V |
|---|
Available SmartSlot™ Interface Quantity
| Available SmartSlot™ Interface Quantity | 1 |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 40.0dBA |
|---|
Available SmartSlot™ Interface Quantity (25)
| Available SmartSlot™ Interface Quantity (25) | Surge Protection and Filtering |
|---|
