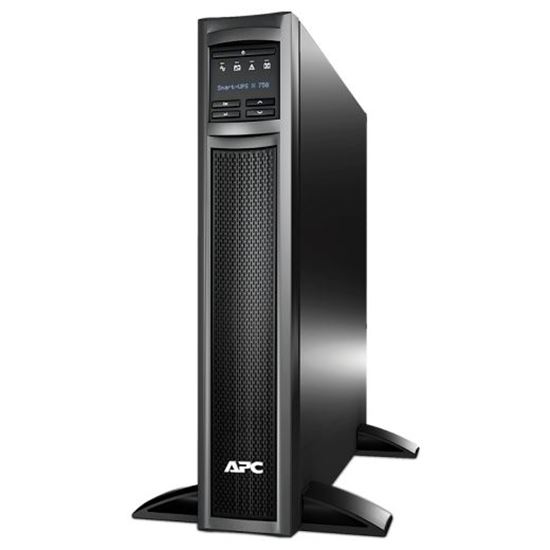

APC Smart-UPS 750VA (600W) 2U Rack/ Tower. 230V Input/Output. 8x IEC
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMX750I
- MPN: SMX750I
APC
APC Smart-UPS X SMX750I - 750VA, 8x C13 output, USB, expandable…
- SKU
- CNZ-CD-004475
- MPN
- SMX750I
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 750VA (600W) 2U Rack/ Tower. 230V Input/Output. 8x IEC C13 Outlets. With Battery Backup. Intuitive LCD interface. USB, RJ-45 Serial, & SmartSlot Connectivity Audible Alarm.
Key features
- AC outlet types: IEC 60320
- SmartSlot: Yes
- SmartConnect port: No
- Management card included: No
- Sustainability certificates: Green Premium
- Total carbon footprint (kg of CO2e): 1030.49
Specifications
RoHS
| RoHS | Compliant |
|---|
Spec
| Spec | Output |
|---|
Colour
| Colour | Black |
|---|
Topology
| Topology | Line-interactive |
|---|
Approvals
| Approvals | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
|---|
Filtering
| Filtering | Full-time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449 |
|---|
Net Weight
| Net Weight | 22.05KG |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 490MM, 49.0CM |
|---|
Maximum Width
| Maximum Width | 432MM, 43.2CM |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Filtering (28)
| Filtering (28) | Physical |
|---|
Maximum Height
| Maximum Height | 89MM, 8.9CM |
|---|
Shipping Depth
| Shipping Depth | 620MM, 62.0CM |
|---|
Shipping Width
| Shipping Width | 589MM, 58.9CM |
|---|
Input frequency
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 246MM, 24.6CM |
|---|
Shipping weight
| Shipping weight | 26.5KG |
|---|
Units per Pallet
| Units per Pallet | 8.0 |
|---|
Interface Port(s)
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
|---|
Standard warranty
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Waveform type (6)
| Waveform type (6) | Input |
|---|
Battery Slots Empty
| Battery Slots Empty | 1 |
|---|
Storage Temperature
| Storage Temperature | -15°C~45°C |
|---|
Surge energy rating
| Surge energy rating | 645 Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 045°C~45°C |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (39)
| Units per Pallet (39) | Environmental |
|---|
Standard warranty (50)
| Standard warranty (50) | Sustainable Offer Status |
|---|
Included Battery Modules
| Included Battery Modules | 1 |
|---|
DC Overcurrent Protection
| DC Overcurrent Protection | 60A |
|---|
Other Input Voltages (11)
| Other Input Voltages (11) | Batteries & Runtime |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5% |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0%~95% |
|---|
Online thermal dissipation
| Online thermal dissipation | 69.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0%~95% |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 104 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3-5 |
|---|
DC Overcurrent Protection (20)
| DC Overcurrent Protection (20) | Communications & Management |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 600 Watts / 750VA |
|---|
Online thermal dissipation (47)
| Online thermal dissipation (47) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60 Hz +/- 3Hz Sync to mains |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 151 - 302 Adjustable, 160 - 286V |
|---|
Available SmartSlot™ Interface Quantity
| Available SmartSlot™ Interface Quantity | 1 |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 40.0dBA |
|---|
Available SmartSlot™ Interface Quantity (25)
| Available SmartSlot™ Interface Quantity (25) | Surge Protection and Filtering |
|---|
Questions
$1,697.39inc GST
