ATEN 2 PORT USB 2.0 DP 4K KVM SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS782DP-AT
- MPN: CS782DP-AT
ATEN

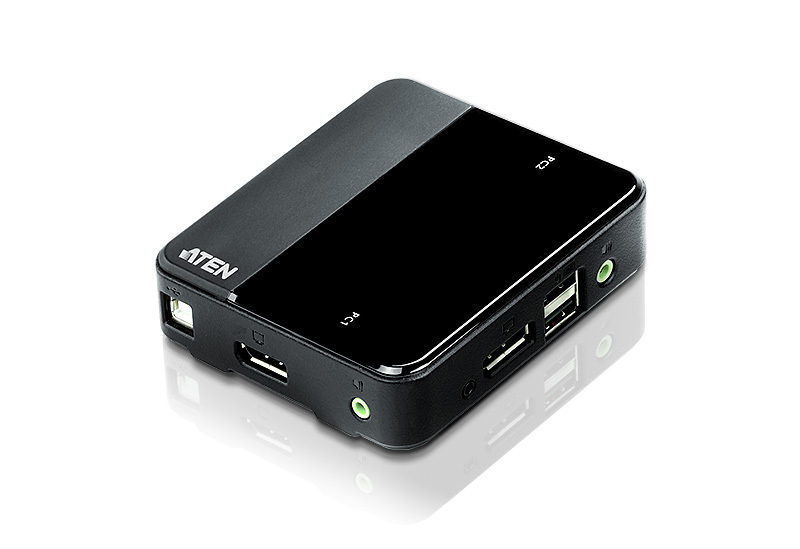

ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
- SKU
- CNZ-DD-012777
- MPN
- CS782DP-AT
- Rating
- No reviews yet
Overview
With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.
1x CS782DP 2-Port USB DisplayPort KVM Switch
2x LIN5-20K1-K12G DisplayPort Cables
2x LIN6-04U1-V1BG USB Cables
2x LIN5-0205-21CG Audio Cables
1x Remote Port Selector
1x User Instructions
1x CS782DP 2-Port USB DisplayPort KVM Switch
2x LIN5-20K1-K12G DisplayPort Cables
2x LIN6-04U1-V1BG USB Cables
2x LIN5-0205-21CG Audio Cables
1x Remote Port Selector
1x User Instructions
Key features
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- DisplayPorts quantity: 2
- USB 2.0 Type-B ports quantity: 2
- Console ports: 3.5mm headphone, DisplayPort, USB A
- USB connector type: USB Type-A, USB Type-B
- Audio connections: Yes
- Headphone outputs: 1
- Number of microphone inputs: 1
- HD type: 4K Ultra HD
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 60 Hz
- Scan interval: 3,5,10,20 s
- Rack mounting: No
- Product colour: Black
- Housing material: Plastic
- LED indicators: Yes
- Hot keys: Yes
- Built-in display: No
- Power source: DC
- Input voltage: 5 V
- Power consumption (typical): 2.18 W
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 2.18 W |
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Hot keys | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
Logistics data
| Master (outer) case net weight | 5.43 kg |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 497 mm |
| Master (outer) case height | 196 mm |
| Master (outer) case gross weight | 7.71 kg |
| Products per master (outer) case | 10 pc(s) |
Packaging data
| Package width | 59 mm |
|---|---|
| Package depth | 239 mm |
| Package height | 175 mm |
| Package weight | 687 g |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
Weight & dimensions
| Width | 93 mm |
|---|---|
| Depth | 93.7 mm |
| Height | 26.8 mm |
| Weight | 543 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Questions
$221.94inc GST
