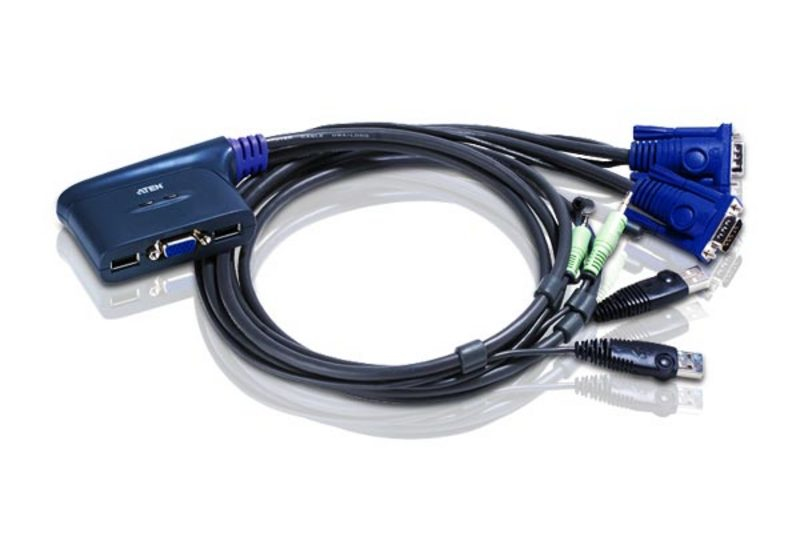

ATEN 2 PORT USB CABLE KVM SWITCH WITH AUDIO Networking > Network Accessories
Brand: ATEN Category: Switches SKU: CS62US-AT MPN: CS62US-AT Home Switches ATEN ATEN ATEN 2-Port USB VGA KVM Switch with Audio
SKU CNZ-DD-012770
MPN CS62US-AT Overview Specifications Questions Overview Our total USB solution. Link two USB computers to one USB console for a complete USB system compatible with all operating platforms: PC, Mac and Sun.
Key features Number of computers controlled: 2 Keyboard port type: USB Mouse port type: USB Video port type: VGA VGA (D-Sub) ports quantity: 2 Console ports: 3.5mm headphone, USB A, VGA (D-Sub) Console USB ports quantity: 2 USB hub: Yes USB 2.0 Type-A hub ports quantity: 2 USB connector type: USB Type-A Audio connections: Yes Headphone outputs: 1 HD type: QXGA Maximum resolution: 2048 x 1536 pixels Scan interval: 5 s DDC2B support: Yes Rack mounting: No Product colour: Black Housing material: Plastic LED indicators: Yes Hot keys: Yes Built-in display: No Power source: DC Input voltage: 5 V At a glance Power source DC Input voltage 5 V Power consumption (typical) 0.33 W Rack mounting No Product colour Black Housing material Plastic LED indicators Yes Hot keys Yes
All 46 specifications Specifications Power Power source DC Input voltage 5 V Power consumption (typical) 0.33 W
Design Rack mounting No Product colour Black Housing material Plastic LED indicators Yes Hot keys Yes
Performance HD type QXGA Maximum resolution 2048 x 1536 pixels Scan interval 5 s DDC2B support Yes
Logistics data Master (outer) case net weight 5.64 kg Harmonized System (HS) code 85176200 Master (outer) case width 297 mm Master (outer) case length 385 mm Master (outer) case height 330 mm Master (outer) case gross weight 8.01 kg Products per master (outer) case 20 pc(s)
Packaging data Package width 55 mm Package depth 185 mm Package height 155 mm Package weight 374 g
Packaging content Quick installation guide Yes Manual Yes
Ports & interfaces Number of computers controlled 2 Keyboard port type USB Mouse port type USB Video port type VGA VGA (D-Sub) ports quantity 2 Console ports 3.5mm headphone, USB A, VGA (D-Sub) Console USB ports quantity 2 USB hub Yes USB 2.0 Type-A hub ports quantity 2 USB connector type USB Type-A Audio connections Yes Headphone outputs 1
Weight & dimensions Width 87.5 mm Depth 60.8 mm Height 28 mm Weight 282 g
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
$91.99 inc GST
