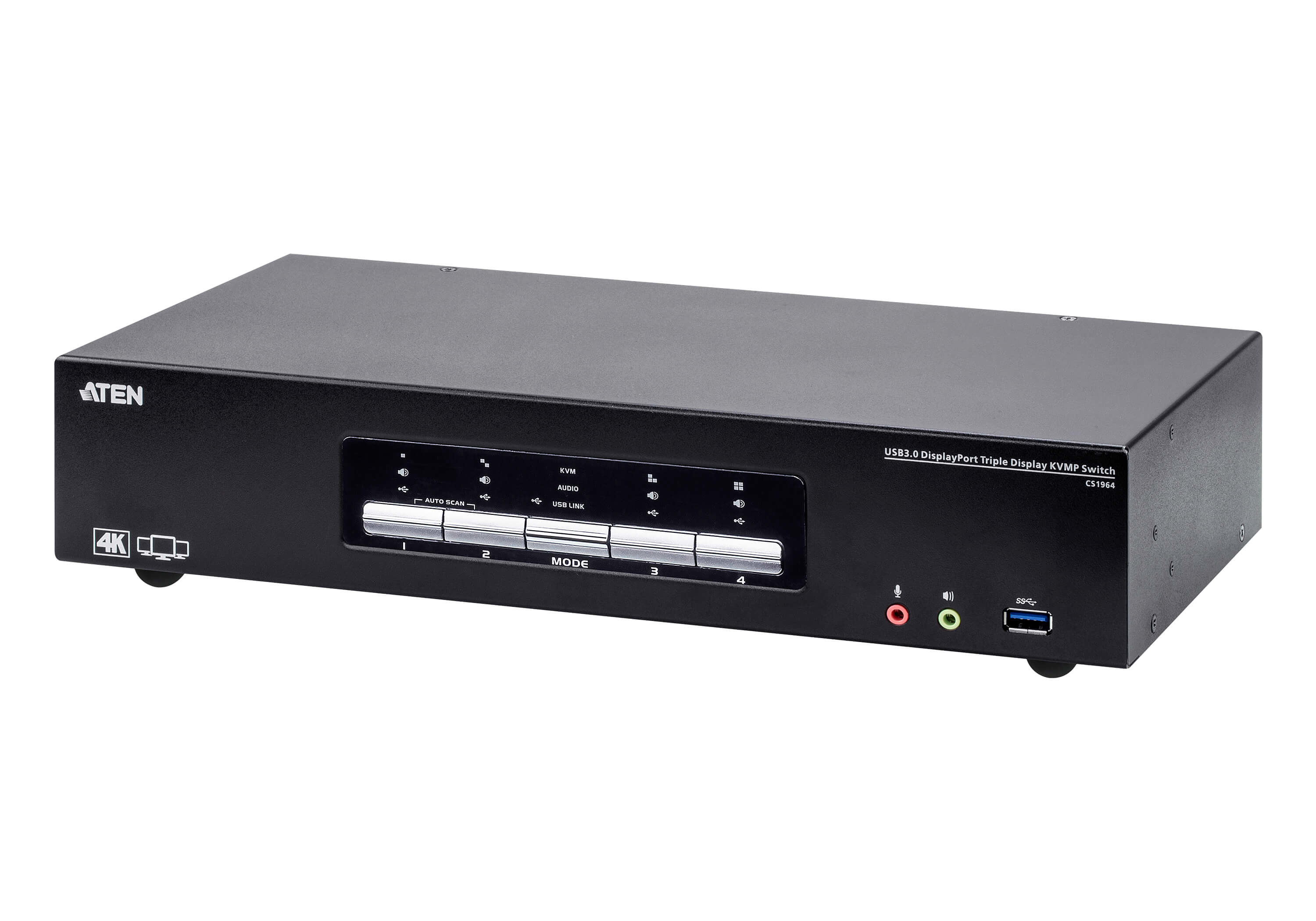

ATEN 4 PORT USB 3.0 4K TRIPLE DISPLAYPORT KVMP SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1964-AT-U
- MPN: CS1964-AT-U
Overview
1x 4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch
6x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
2x LIN5-0205-21DG Audio Cables
1x 0AD8-8012-33MG Power Adapter
1x LIN2-418K-E12G Power cable
1x User Instructions
Note: The included cable sets are for two computer port connection only. Optional cable sets (2L-7D02UDPX6) are available with a separate purchase for the remaining computer port connection.
Key features
- Number of computers controlled: 4
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- DisplayPorts quantity: 12
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
- Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
- Console USB ports quantity: 2
- USB hub: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- USB connector type: USB Type-A, USB Type-B
- Audio connections: Yes
- Headphone outputs: 6
- Number of microphone inputs: 6
- DC-in jack: Yes
- HD type: 4K Ultra HD
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,99 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 12 V |
| Power consumption (typical) | 15.49 W |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
Logistics data
| Master (outer) case net weight | 10.7 kg |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 13 kg |
| Products per master (outer) case | 3 pc(s) |
Packaging data
| Package width | 131 mm |
|---|---|
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.03 kg |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 12 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Yes |
System requirements
| Windows operating systems supported | Yes |
|---|
Weight & dimensions
| Width | 335 mm |
|---|---|
| Depth | 156 mm |
| Height | 65.5 mm |
| Weight | 3.57 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Questions
$2,602.44inc GST
