ATEN 4-PORT USB DISPLAYPORT SECURE KVM SWITCH WITH CAC (PSD PP V4.0 COMPLIANT)

Networking > Network Accessories

  • Brand: ATEN
  • Category: Switches
  • SKU: CS1184DP4C-AT-U
  • MPN: CS1184DP4C-AT-U
ATEN

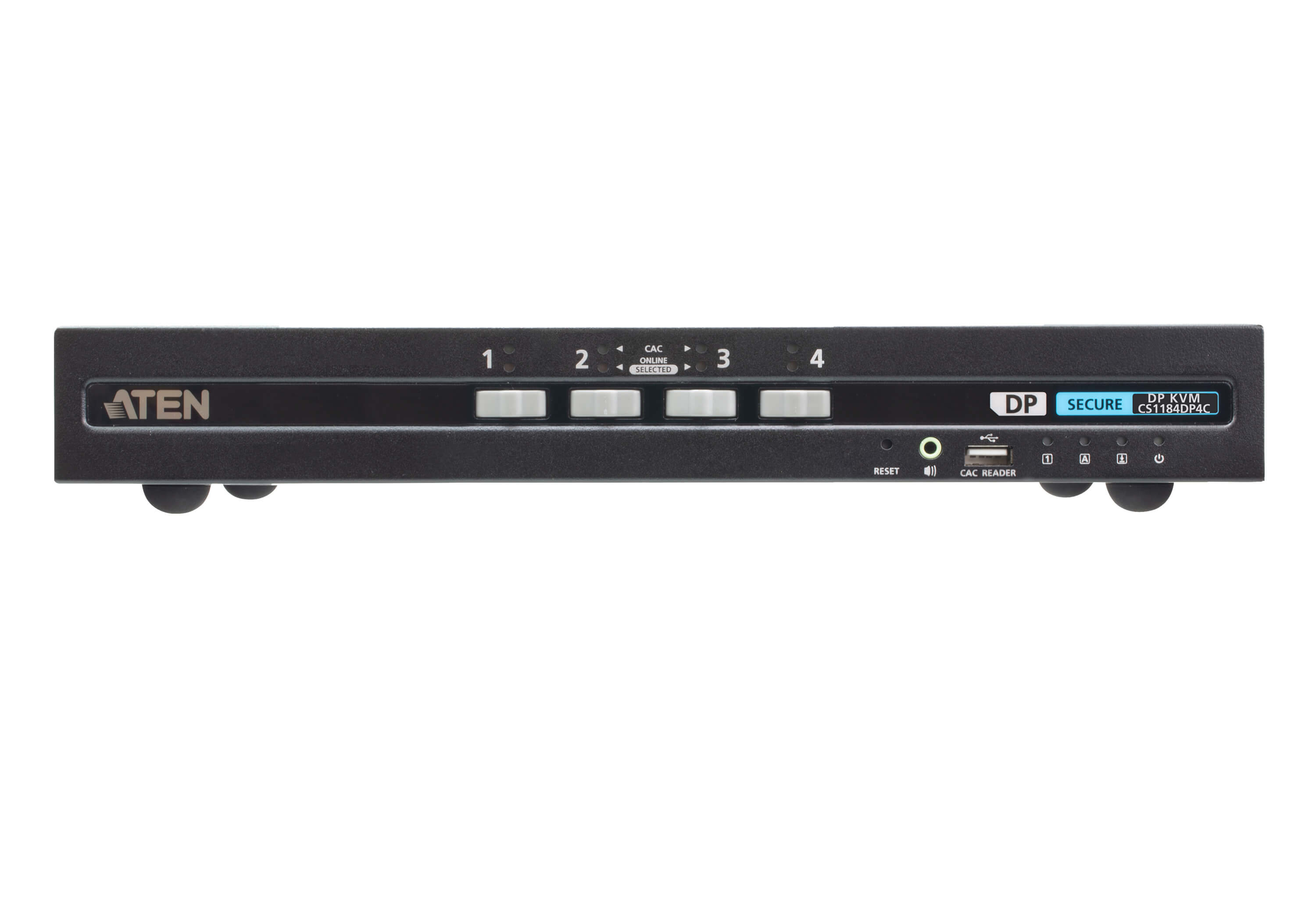

ATEN CS1184DP4C-AT-U KVM switch Black

SKU
CNZ-DD-012717
MPN
CS1184DP4C-AT-U

Overview

ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1.With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184DP4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Key features

  • Number of computers controlled: 1
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 4
  • USB 2.0 Type-B ports quantity: 8
  • Console ports: DisplayPort, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 2.0 Type-A hub ports quantity: 1
  • Audio connections: Yes
  • Headphone outputs: 4
  • RJ-11 ports quantity: 1
  • HD type: 4K Ultra HD
  • Maximum resolution: 3840 x 2160 pixels
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Built-in display: No
  • Power source: AC
  • Input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 1 A

Specifications

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50/60 Hz
Input current1 A
Power consumption (typical)9.1 W

Design

Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes

Display

Built-in displayNo

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels

Packaging data

Package width116 mm
Package depth540 mm
Package height233 mm
Package weight2.56 kg

Packaging content

Cables includedAC
ManualYes

Ports & interfaces

Number of computers controlled1
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity4
USB 2.0 Type-B ports quantity8
Console portsDisplayPort, USB A
Console USB ports quantity2
USB hubYes
USB 2.0 Type-A hub ports quantity1
Audio connectionsYes
Headphone outputs4
RJ-11 ports quantity1

Weight & dimensions

Width163.9 mm
Depth335 mm
Height44 mm
Weight1.97 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions

$1,885.99inc GST
