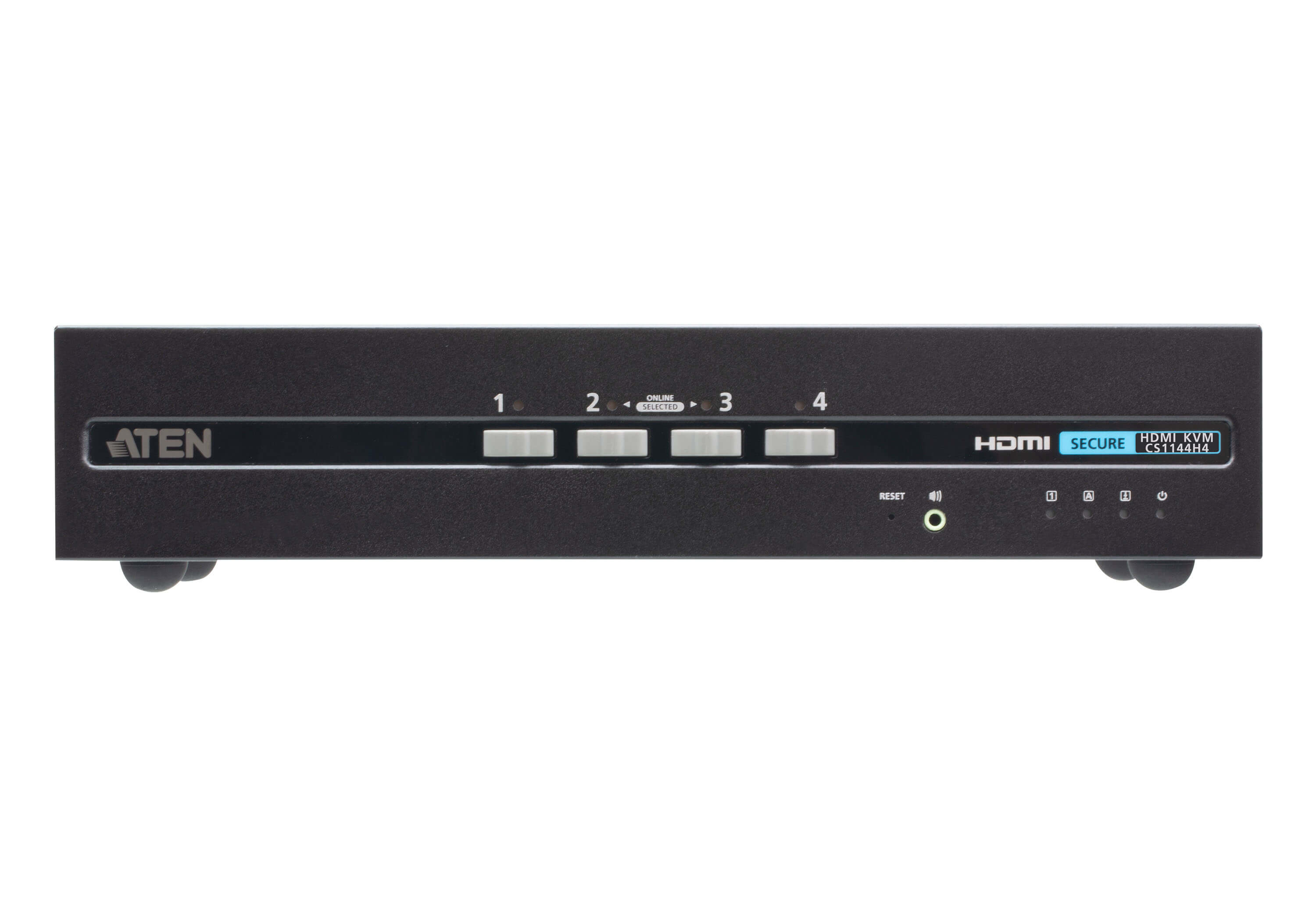

ATEN 4-PORT USB HDMI DUAL DISPLAY SECURE KVM SWITCH (PSD PP V4.0 COMPLIANT)

Networking > Network Accessories

  • Brand: ATEN
  • Category: Switches
  • SKU: CS1144H4-AT-U
  • MPN: CS1144H4-AT-U
ATEN

ATEN 4-Port USB HDMI Dual Display Secure KVM Switch (PSD PP v4.0…

SKU
CNZ-DD-012712
MPN
CS1144H4-AT-U

Overview

ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1 With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Key features

  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 8
  • USB 2.0 Type-B ports quantity: 4
  • Console ports: HDMI, USB A, USB B
  • Console USB ports quantity: 2
  • Console HDMI ports quantity: 2
  • Audio connections: Yes
  • Headphone outputs: 4
  • RJ-11 ports quantity: 1
  • HD type: 4K Ultra HD
  • Maximum resolution: 3840 x 2160 pixels
  • Rack mounting: No
  • Product colour: Black
  • Housing material: Metal
  • Wired remote switch: Yes
  • LED indicators: Yes
  • Push button: Yes
  • Built-in display: No
  • Power source: AC
  • Input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz

Specifications

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1 A
Power consumption (typical)7.2 W

Design

Rack mountingNo
Product colourBlack
Housing materialMetal
Wired remote switchYes
LED indicatorsYes
Push buttonYes

Display

Built-in displayNo

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels

Packaging content

Cables includedAC
ManualYes

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity8
USB 2.0 Type-B ports quantity4
Console portsHDMI, USB A, USB B
Console USB ports quantity2
Console HDMI ports quantity2
Audio connectionsYes
Headphone outputs4
RJ-11 ports quantity1

Weight & dimensions

Width335 mm
Depth163.9 mm
Height65.5 mm
Weight2.13 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Questions

$3,106.14inc GST
