ATEN PSD PP4.0 SECURE KVM REMOTE PORT SELECTOR

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: 2XRT-0019G
  • MPN: 2XRT-0019G
ATEN

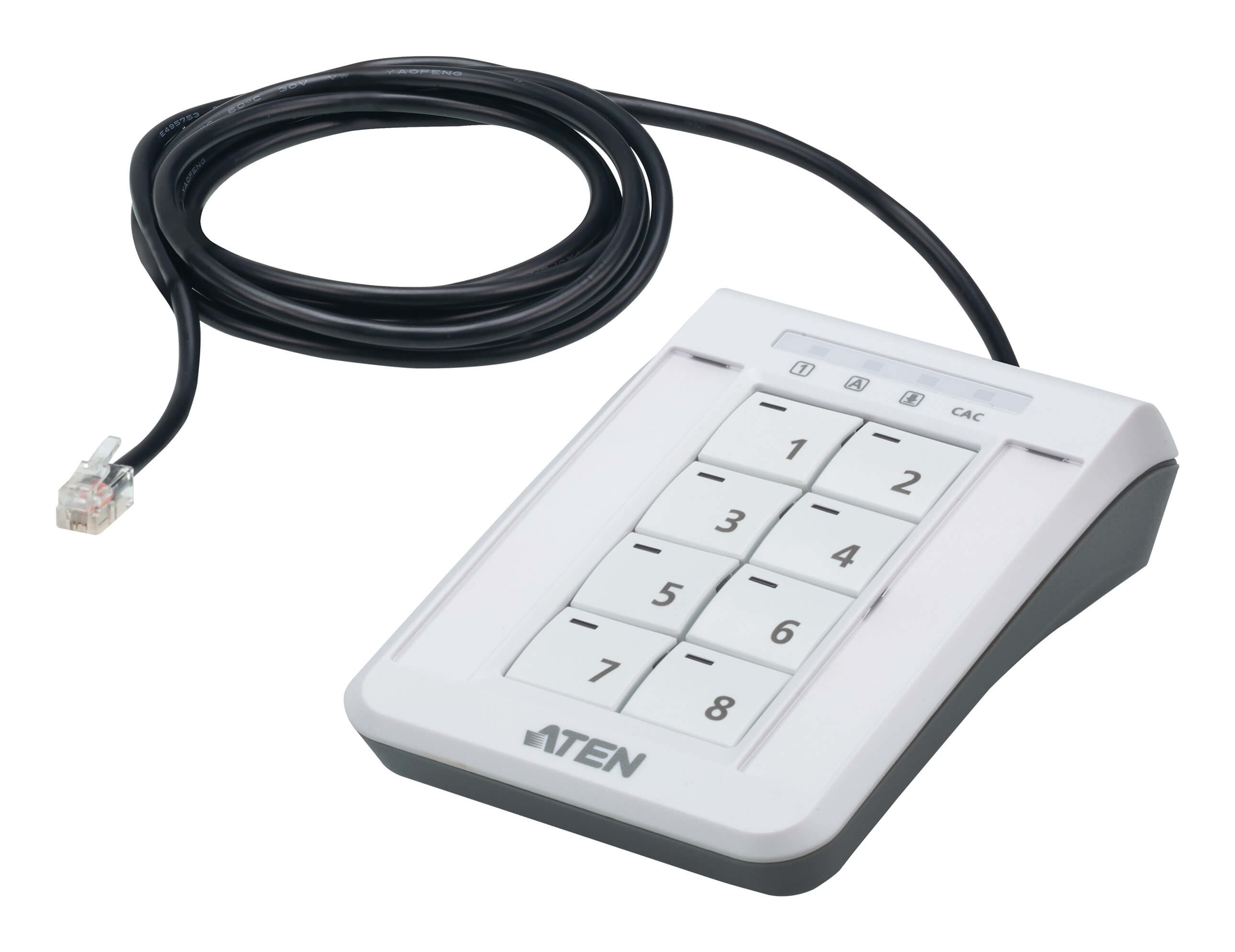

ATEN PP4.0 Secure KVM Remote Port Selector

Our SKU
MPN
Barcode

Overview

The ATEN PP4.0 Secure KVM Remote Port Selector (RPS) ,2XRT-0019G, is designed to enhance user experience and efficiency while operating ATEN PP4.0 Secure KVM Switches by providing an efficient way to switch between connected computers. Simply plug and play1 the RPS to the Secure KVM Switch2 without any additional software installation required to quickly and easily control your ATEN PP4.0 Secure KVM Switch. Once the RPS is connected, simply press the RPS pushbuttons to switch KVM focus. The status will show on both the KVM front panel LEDs and the RPS front panel LEDs. The RPS’ Tamper-Evident Label and Always-on Chassis Intrusion Detection prevent any attempt at physical tampering, helping to safeguard classified data against malicious attacks. Thanks to its compact size, the device can be placed line-of-sight on the desktop, enabling instant switching across multiple PCs and optimizing productivity while eliminating cable clutter.

Note:
1. Make sure to connect the RPS before powering on the ATEN Secure KVM Switch. If the RPS is connected after the ATEN Secure KVM Switch is powered on, the RPS will not be detected.
2. The RPS is compatible with ATEN PP4.0 2/4/8-Port Secure KVM Switches.

Key features

  • Product type: Keypad
  • Interface: RJ-11
  • Material: Plastic
  • Product colour: Black, White
  • Maximum operating temperature: 50 °C
  • Cable length: 1.8 m
  • Country of origin: Taiwan
  • Power source: DC
  • Input voltage: 5 V
  • Input current: 0.17 A
  • Power consumption (typical): 0.15 W
  • Width: 55 mm
  • Depth: 155 mm
  • Height: 223 mm
  • Weight: 150 g
  • Package weight: 200 g
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Heat dissipation: 1 BTU/h
  • Package volume: 1982.179 cm³
  • Master (outer) case gross weight: 8.49 kg
  • Master (outer) case length: 389 mm

Specifications

Power

Power sourceDC
Input voltage5 V
Input current0.17 A
Power consumption (typical)0.15 W

Features

Product typeKeypad
InterfaceRJ-11
MaterialPlastic
Product colourBlack, White
Maximum operating temperature50 °C
Cable length1.8 m
Country of originTaiwan

Logistics data

Master (outer) case gross weight8.49 kg
Master (outer) case length389 mm
Master (outer) case width328 mm
Master (outer) case height330 mm
Master (outer) case volume42192.102 cm³
Master (outer) case net weight6.06 kg

Packaging data

Package weight200 g

Technical details

Package volume1982.179 cm³

Weight & dimensions

Width55 mm
Depth155 mm
Height223 mm
Weight150 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%
Heat dissipation1 BTU/h

Questions

$218.49inc GST
