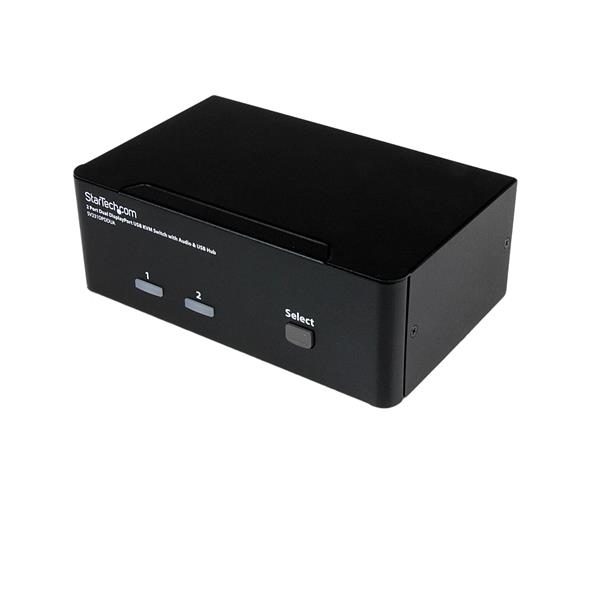

STARTECH.COM 2 PORT DUAL DISPLAYPORT USB KVM SWITCH W/ AUDIO & USB HUB 3 YR
Servers & Storage > Servers
- Brand: STARTECH
- Category: Servers
- SKU: SV231DPDDUA
- MPN: SV231DPDDUA
STARTECH
StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB…
- SKU
- CNZ-DD-042400
- MPN
- SV231DPDDUA
- Rating
- No reviews yet
−22%
Overview
Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
Key features
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- DisplayPorts quantity: 6
- Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- Console USB ports quantity: 2
- USB hub: Yes
- USB connector type: USB Type-A
- Audio connections: Yes
- Headphone outputs: 3
- Number of microphone inputs: 3
- DC-in jack: Yes
- Ethernet LAN: No
- HD type: 4K Ultra HD
- Maximum resolution: 3840 x 2400 pixels
- DDC2B support: Yes
- Hot-Plug support: Yes
- Daisy chain: No
- Number of users: 1 user(s)
- Audio channels: 7.1
- Rack mounting: No
- Product colour: Black
- Housing material: Steel
Specifications
Power
| Input voltage | 110 - 240 V |
|---|---|
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, REACH, TAA |
Display
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
Network
| Ethernet LAN | No |
|---|
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2400 pixels |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Audio channels | 7.1 |
Logistics data
| Harmonized System (HS) code | 85176200 |
|---|
Other features
| Audio support | Yes |
|---|---|
| IP control | No |
Packaging data
| Package width | 249 mm |
|---|---|
| Package depth | 187 mm |
| Package height | 100 mm |
| Package weight | 1.19 kg |
Sustainability
| Compliance certificates | RoHS |
|---|
Packaging content
| Manual | Yes |
|---|
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 6 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 161 mm |
|---|---|
| Depth | 100 mm |
| Height | 57.5 mm |
| Weight | 734 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | 20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
$640.54inc GST
