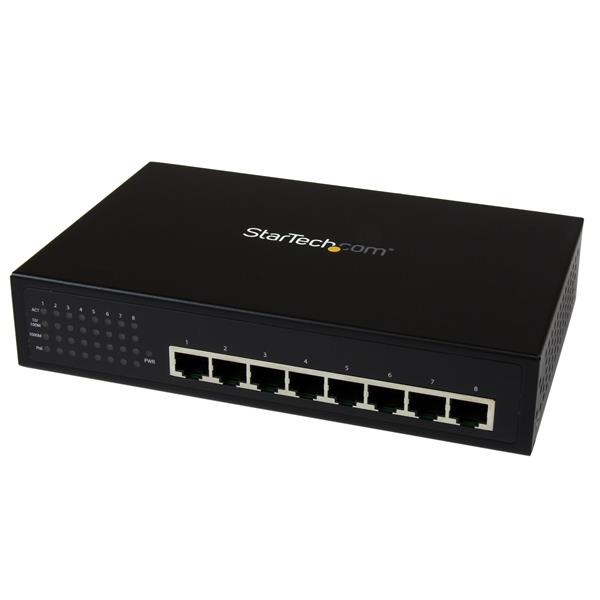

StarTech.com 8 Port Industrial Gigabit PoE+ Switch
8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch802.3af/at PoE+ SwitchWall MountablePoE Network SwitchGigabit PoE Switch 8 Port PoE Gigabit Switch
- Brand: StarTech.com
- Category: Switches
- SKU: 2572139
- MPN: IES81000POE
StarTech.com
StarTech.com 8 Port Unmanaged Industrial Gigabit Power over Ethernet…
- SKU
- CNZ-IM-021479
- MPN
- IES81000POE
- Rating
- No reviews yet
Overview
Connect power and Gigabit Ethernet data to 8 PoE-enabled devices, with 30W per-port output - Wall Mountable
The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.
Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.
A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 30 Watts per-port from the switch
- Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
- Provides durable performance in harsh environments with a sturdy steel construction
The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.
Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.
A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 30 Watts per-port from the switch
- Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
- Provides durable performance in harsh environments with a sturdy steel construction
Key features
- Switch type: Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- Switching capacity: 2 Gbit/s
- Packet buffer memory: 0.128 MB
- Rack mounting: No
- Product colour: Black
- LED indicators: Activity, Link, PoE
- AC input voltage: 110 - 240 V
- Input current: 2 A
- Power consumption (typical): 120 W
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -20 - 90 °C
- Operating relative humidity (H-H): 10 - 90%
- Width: 188 mm
- Depth: 119 mm
- Height: 38 mm
Specifications
Power
| AC input voltage | 110 - 240 V |
|---|---|
| Input current | 2 A |
| Power consumption (typical) | 120 W |
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, PoE |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Packaging data
| Package width | 197 mm |
|---|---|
| Package depth | 371 mm |
| Package height | 69 mm |
| Package weight | 1.75 kg |
Data transmission
| Switching capacity | 2 Gbit/s |
|---|---|
| Packet buffer memory | 0.128 MB |
Packaging content
| Manual | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Management features
| Switch type | Unmanaged |
|---|
Weight & dimensions
| Width | 188 mm |
|---|---|
| Depth | 119 mm |
| Height | 38 mm |
| Weight | 750 g |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
