StarTech.com KVM Console Server Rack 19in Single Port
Rackmount KVM Console - 1U - 19in Display - Single Port KVM - Rack Mount Monitor - Rackmount LCD Monitor - Rackmount Console
- Brand: StarTech.com
- Category: Switches
- SKU: 4201984
- MPN: RKCONS1901
StarTech.com
StarTech.com Rackmount KVM Console - Single Port VGA KVM with 19"…
- SKU
- CNZ-IM-043720
- MPN
- RKCONS1901
- Rating
- No reviews yet
−22%
Overview

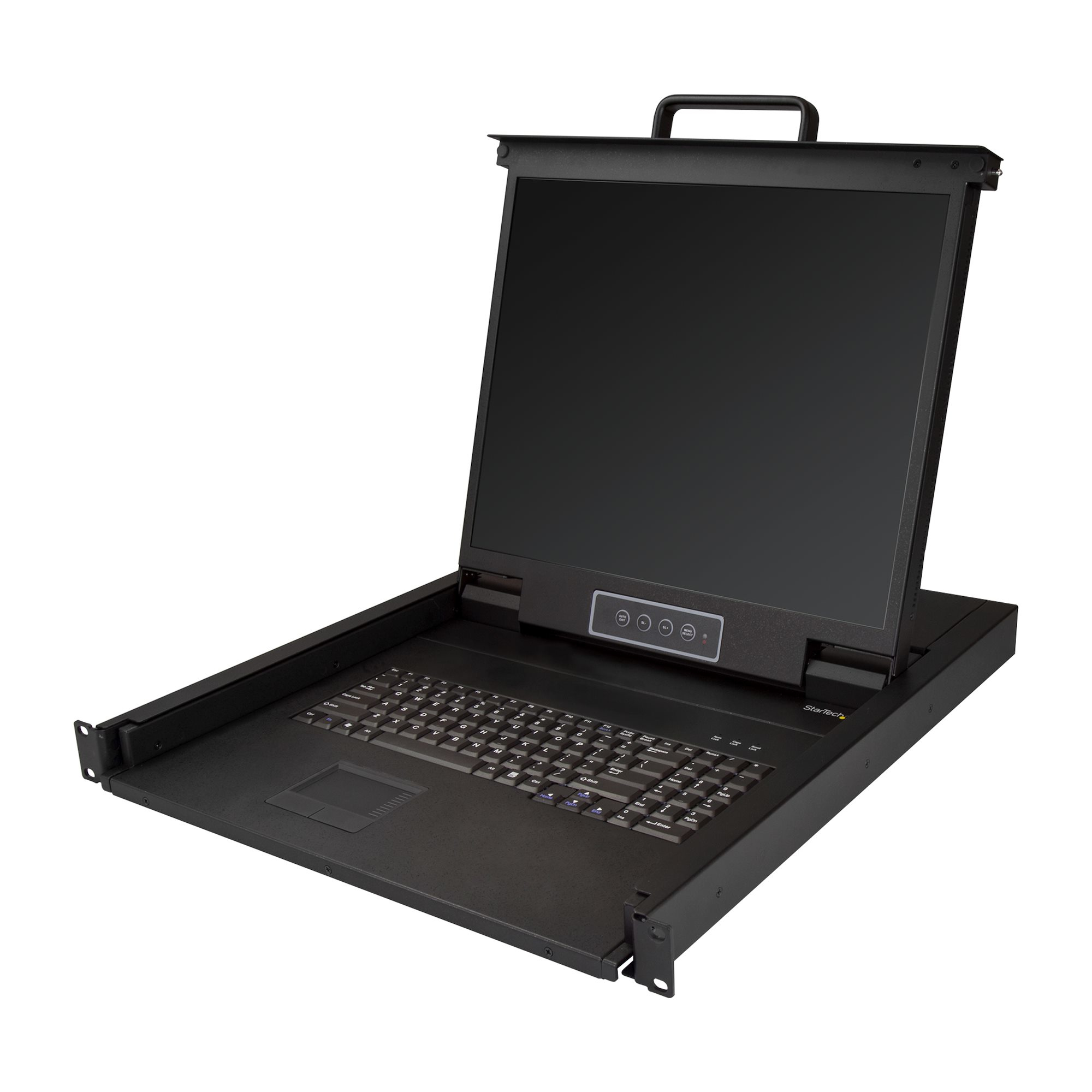

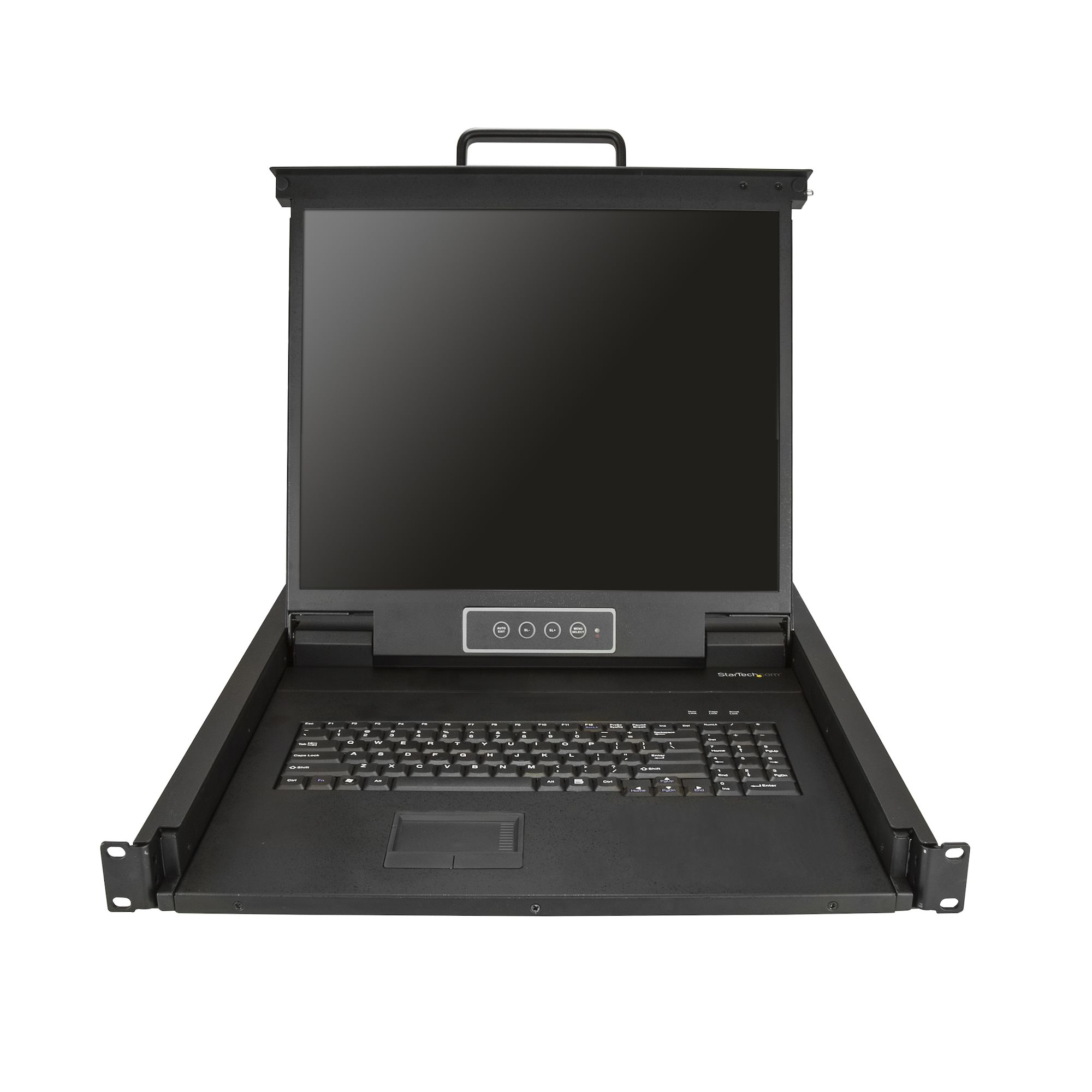

Control your server or KVM switch from a centralized rack console
This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring

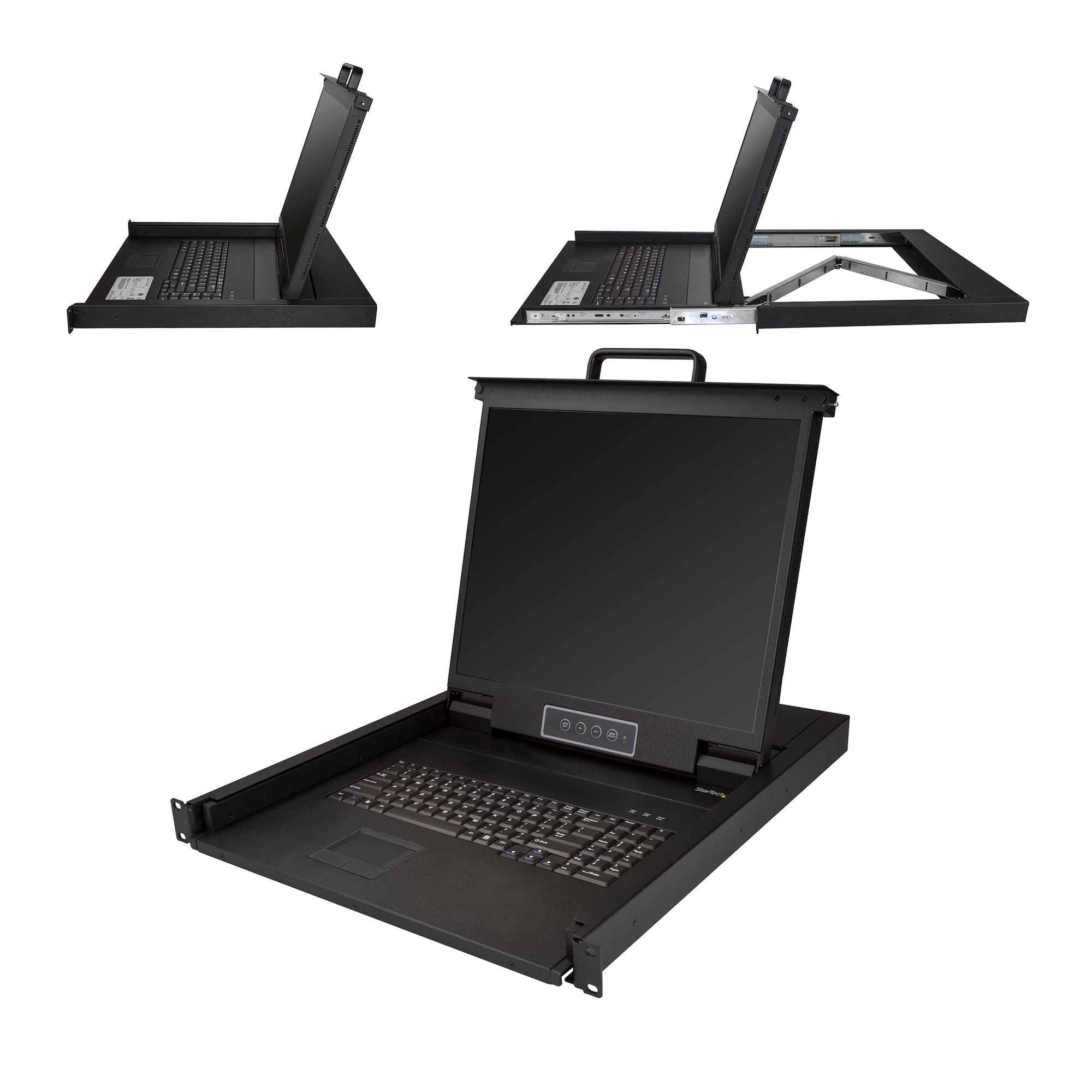

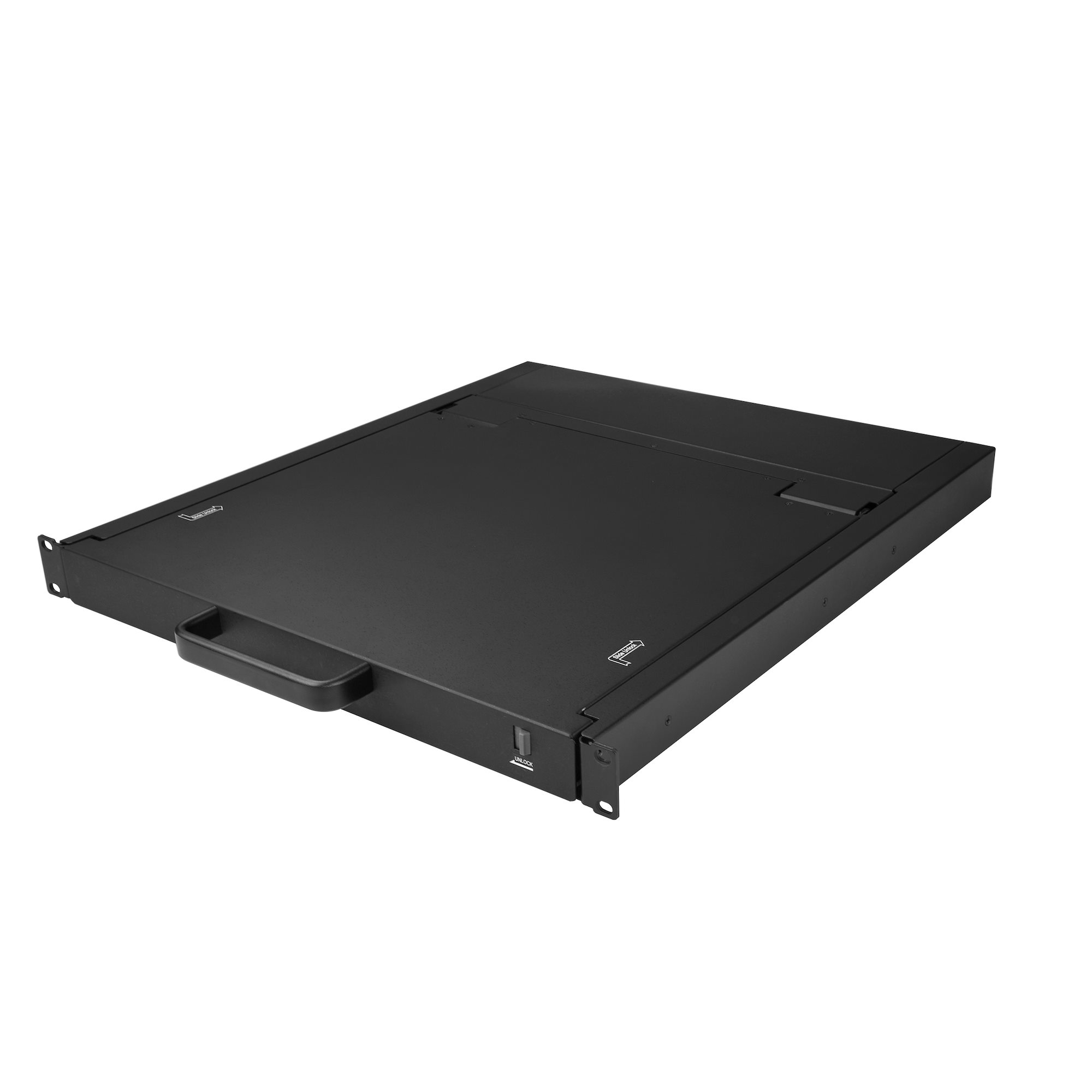

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Display diagonal: 48.3 cm (19")
- Display resolution: 1280 x 1024 pixels
- Display brightness: 250 cd/m²
- Contrast ratio (typical): 1000:1
- Viewing angle, horizontal: 176°
- Viewing angle, vertical: 170°
- On Screen Display (OSD): Yes
- Pixel pitch: 0.264 x 0.264 mm
- Aspect ratio: 4:3
- Display type: LCD
- Display number of colours: 16.78 million colours
- Material: Steel
- Mean time between failures (MTBF): 50000 h
- Product colour: Black
- Operating relative humidity (H-H): 10 - 80%
- Audio support: No
- Daisy chain: Yes
- Key lock: No
- IP control: No
- LED indicators: Yes
- Compliance certificates: RoHS
- Rack capacity: 1U
- Video port type: VGA
- Built-in touchpad: Yes
Specifications
Power
| Power consumption (typical) | 17 W |
|---|
Display
| Display diagonal | 48.3 cm (19") |
|---|---|
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 170° |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.264 x 0.264 mm |
| Aspect ratio | 4:3 |
| Display type | LCD |
| Display number of colours | 16.78 million colours |
Keyboard
| Built-in touchpad | Yes |
|---|---|
| Hot keys | Yes |
Certificates
| Certification | CE, FCC |
|---|
Logistics data
| Master (outer) case width | 615 mm |
|---|---|
| Master (outer) case length | 765 mm |
| Master (outer) case height | 190 mm |
| Products per master (outer) case | 1 pc(s) |
Packaging data
| Package weight | 16 kg |
|---|---|
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 190 mm |

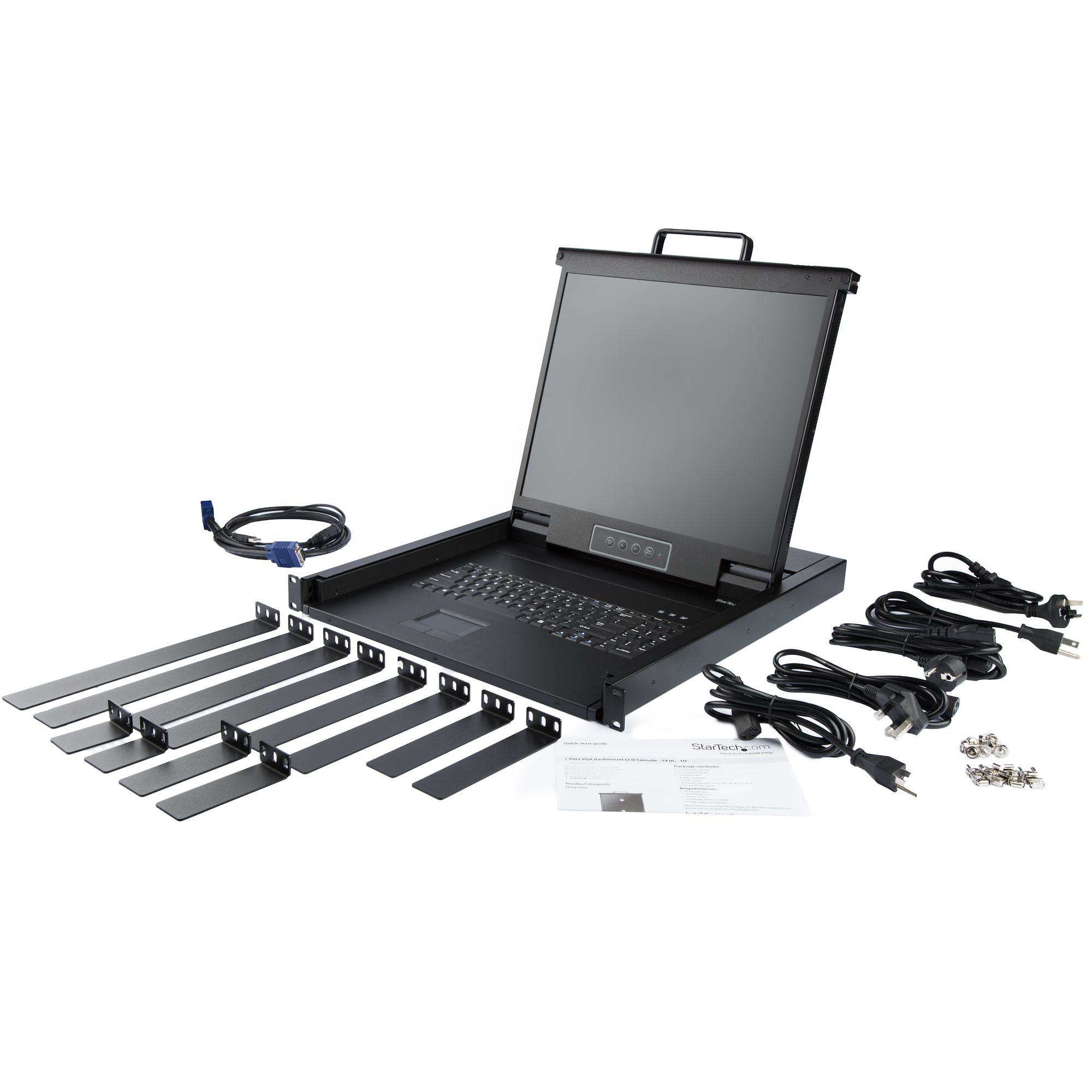

Packaging content
| Cables included | AC, KVM |
|---|---|
| Screws included | Yes |
| Mounting brackets included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick installation guide | Yes |
Technical details
| Material | Steel |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Operating relative humidity (H-H) | 10 - 80% |
| Audio support | No |
| Daisy chain | Yes |
| Key lock | No |
| IP control | No |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
Ports & interfaces
| Video port type | VGA |
|---|
Weight & dimensions
| Width | 483 mm |
|---|---|
| Height | 430 mm |
| Depth | 533 mm |
| Weight | 12.2 kg |
| Mounting depth (min) | 50 cm |
| Mounting depth (max) | 78 cm |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
Questions
$2,076.89inc GST
