StarTech.com Mob Rack Backplane 3.5in SAS II/SATA III
3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS IISATA III 6 Gbps HDD
- Brand: StarTech.com
- Category: Drive Enclosures
- SKU: 2560922
- MPN: HSB3SATSASBA
StarTech.com
StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane…
- SKU
- CNZ-IM-042293
- MPN
- HSB3SATSASBA
- Rating
- No reviews yet
−15%
Overview

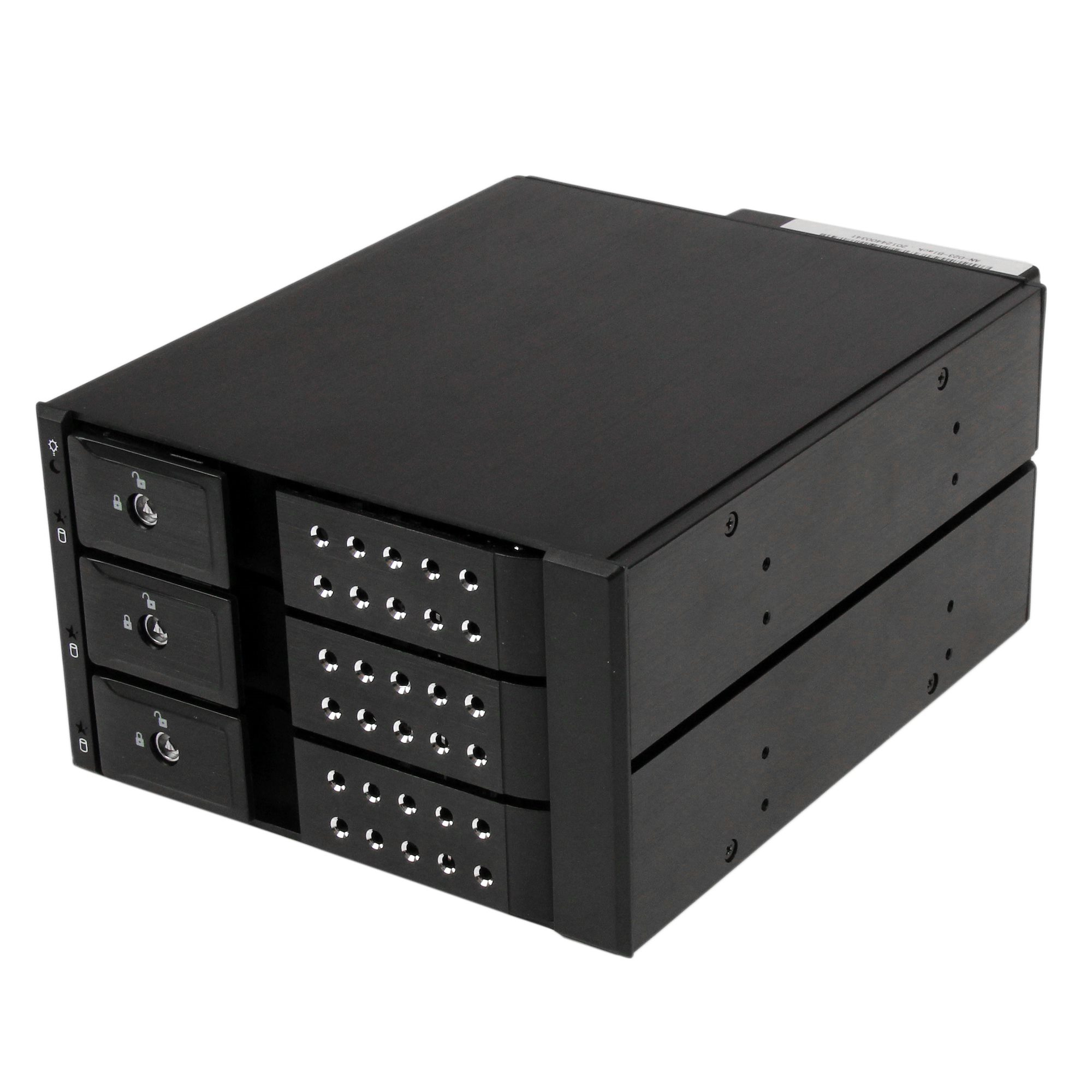

Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Storage drives installed: No
- Installed storage drive type: No
- Total installed storage capacity: 0 TB
- Supported storage drive types: HDD
- Number of storage drives supported: 3
- Maximum supported storage capacity: 12 TB
- Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
- Storage drive size: 3.5"
- Data transfer rate: 6 Gbit/s
- Hot-swap drive bays: Yes
- Host ports: 3
- SATA host port: Yes
- Number of SATA power connectors: 2
- SATA power connector type: SATA 15-pin
- Internal: No
- Product colour: Black
- LED indicators: Activity, Power
- Number of fans: 1 fan(s)
- Backplanes support: Yes
- Width: 145 mm
- Depth: 194.1 mm
- Height: 110 mm
- Weight: 1.2 kg
- Package width: 179 mm
Specifications
Design
| Internal | No |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Power |
| Number of fans | 1 fan(s) |
Storage
| Storage drives installed | No |
|---|---|
| Installed storage drive type | No |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 3 |
| Maximum supported storage capacity | 12 TB |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size | 3.5" |
| Data transfer rate | 6 Gbit/s |
| Hot-swap drive bays | Yes |
Performance
| Backplanes support | Yes |
|---|
Logistics data
| Products per master (outer) case | 8 pc(s) |
|---|---|
| Master (outer) case length | 523 mm |
| Master (outer) case width | 386 mm |
| Master (outer) case height | 290 mm |
| Harmonized System (HS) code | 84717020 |
Other features
| Compliance certificates | RoHS |
|---|
Packaging data
| Package width | 179 mm |
|---|---|
| Package depth | 253 mm |
| Package height | 123 mm |
| Package weight | 1.2 kg |
Packaging content
| Cables included | SATA |
|---|
Ports & interfaces
| Host ports | 3 |
|---|---|
| SATA host port | Yes |
| Number of SATA power connectors | 2 |
| SATA power connector type | SATA 15-pin |
Weight & dimensions
| Width | 145 mm |
|---|---|
| Depth | 194.1 mm |
| Height | 110 mm |
| Weight | 1.2 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
